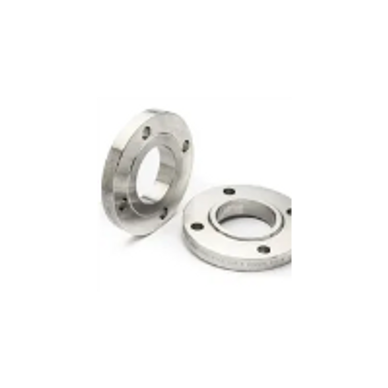

 Slipon Flange are used in low-pressure piping systems, cooling water lines, fuel lines, and process lines where quick assembly and alignment are required.

Size Range: ½" NB to 48" NB

Dimension Standards: ASME B16.5, ASME B16.47 Series A/B, DIN, EN 1092-1

Pressure Class: Class 150, 300, 600, 900, 1500

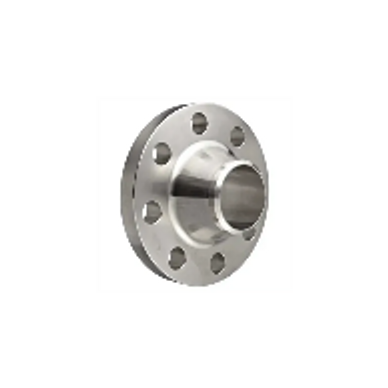

 Weld Neck Flange are Ideal for high-pressure and high-temperature services in oil & gas, petrochemical, and power generation industries.

Size Range: ½" NB to 60" NB

Dimension Standards: ASME B16.5, ASME B16.47, MSS SP-44, DIN, EN 1092-1

Pressure Class: Class 150 to 2500

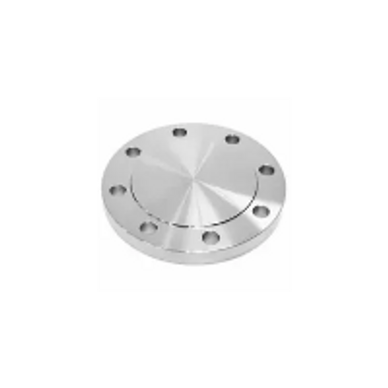

Blind Flange are used to close the ends of piping systems, valves, or pressure vessel openings — suitable for hydro testing and inspection.

Size Range: ½" NB to 60" NB

Dimension Standards: ASME B16.5, ASME B16.47, DIN, EN 1092-1

Pressure Class: Class 150 to 2500

 Socket Weld Flange are used in small-bore high-pressure piping systems in chemical, hydraulic, and steam applications.

Size Range: ½" NB to 4" NB

Dimension Standards: ASME B16.5, MSS SP-79, DIN, EN 1092-1

Pressure Class: Class 150, 300, 600, 900, 1500

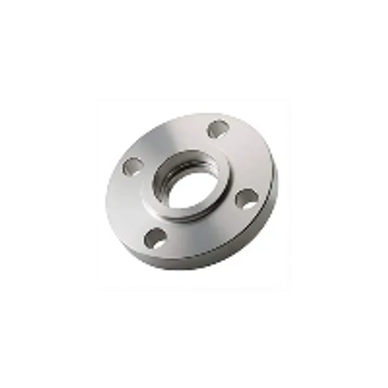

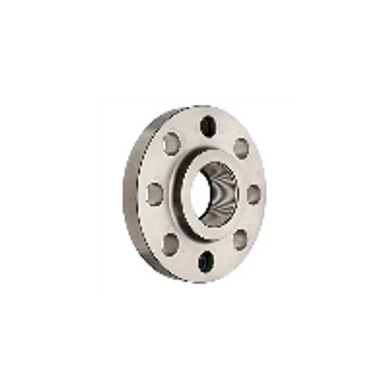

 Threaded Flange are suitable for low-pressure, non-welded systems such as air, water, or gas lines where welding is not preferred.

Size Range: ½" NB to 4" NB

Dimension Standards: ASME B16.5, BS 4504, DIN, EN 1092-1

Pressure Class: Class 150, 300, 600

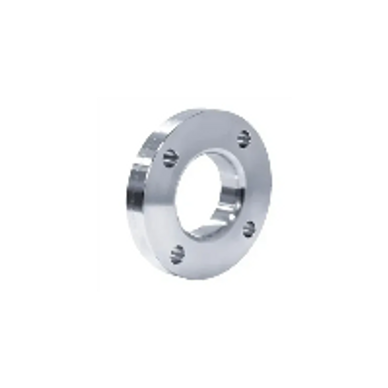

 Lap Joint Flange commonly used in systems requiring frequent disassembly for cleaning or inspection, such as chemical or food processing plants.

Size Range: ½" NB to 24" NB

Dimension Standards: ASME B16.5, MSS SP-44, DIN, EN 1092-1

Pressure Class: Class 150 to 600

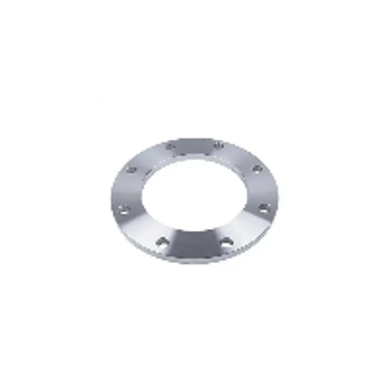

 Loose Plate Flange used in low-pressure applications such as water pipelines, compressed air lines, and low-temperature services.

Size Range: ½" NB to 48" NB

Dimension Standards: ASME B16.5, EN 1092-1, BS 4504, DIN

Pressure Class: PN 6 to PN 40 / Class 150 to 300

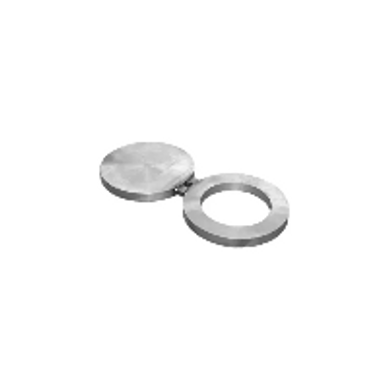

  Spectacle Blind Flange used in pipelines to isolate sections for maintenance or safety purposes, ideal for refineries and offshore platforms.

Size Range: ½" NB to 36" NB

Dimension Standards: ASME B16.48, ASME B16.5

Pressure Class: Class 150 to 900

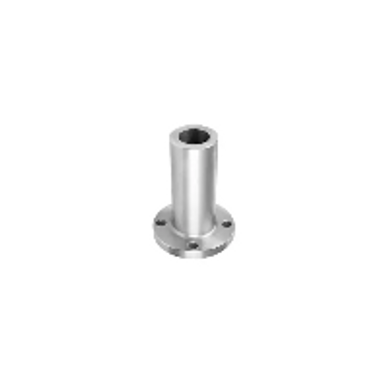

 Long Weld Neck Flange commonly used in high-pressure, high-temperature, and severe service applications, such as reactors and heat exchangers.

Size Range: ½" NB to 24" NB

Dimension Standards: ASME B16.5, ASME B16.47

Pressure Class: Class 150 to 2500

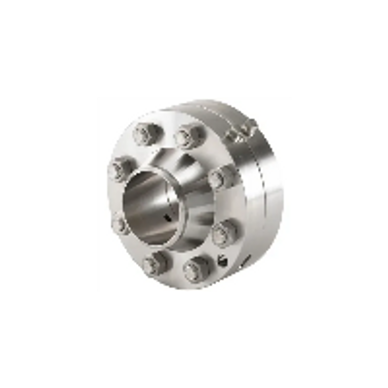

 Orifice Flange designed for flow measurement and metering systems in oil, gas, and process industries.

Size Range: ½" NB to 24" NB

Dimension Standards: ASME B16.36, ASME B16.5

Pressure Class: Class 150 to 2500

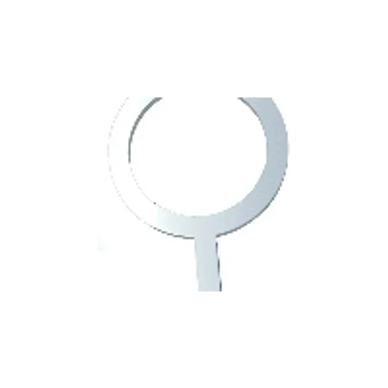

 Paddle Spacer or Ring Spacer used as a temporary line opening or isolation device in pipeline systems for inspection, maintenance, or cleaning. Paddle Spacers (Ring Spacers) are installed between flanges to maintain the gap when the flow is open, acting as the “spacer” part of a spectacle blind set. Commonly used in oil & gas refineries, offshore platforms, petrochemical plants, and power stations.

Size Range: ½" NB to 36" NB

Dimension Standards: ASME B16.48, ASME B16.5, API 605, EN 1092-1

Pressure Class: Class 150, 300, 600, 900, 1500, 2500

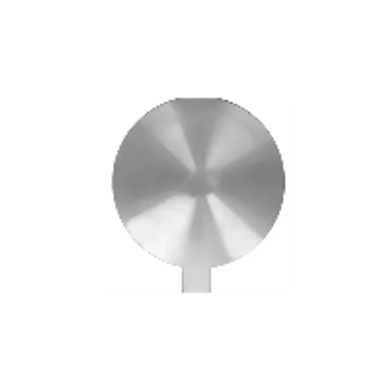

 Line Blinds or Paddle Blinds or Paddle Blanks (Spades) are used to block the flow in a pipeline for maintenance or testing purposes. They serve as the “blank” portion of a spectacle blind and are inserted between two flanges to completely shut off the flow. Ideal for refinery, chemical, gas processing, and power generation pipelines.

Size Range: ½" NB to 36" NB

Dimension Standards: ASME B16.48, ASME B16.5, API 605, DIN, EN 1092-1

Pressure Class: Class 150 to 2500
